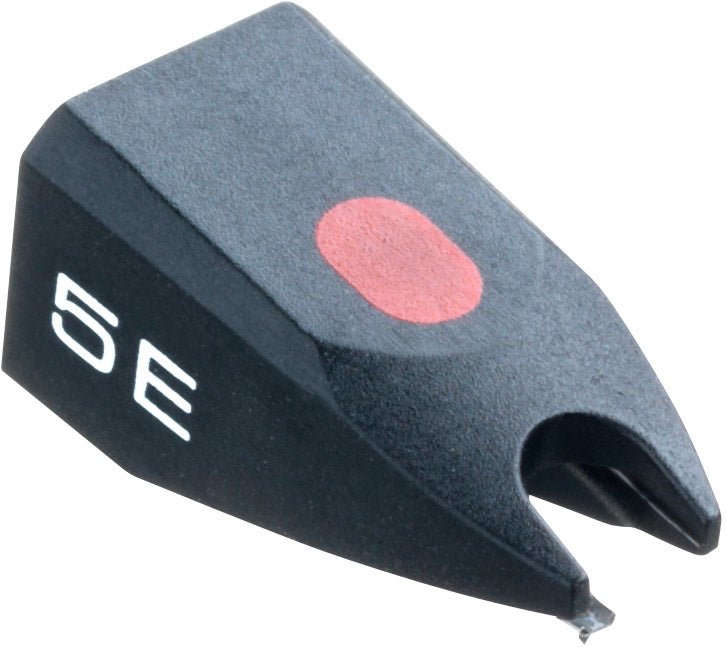

Replacement stylus for Ortofon 5E series cartridges
The Ortofon Optimum Match (OM) cartridges match most tonearms perfectly. If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OMs. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.
If your tonearm is an standard tonearm, just leave the weight-plate.
If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5 g.
An OM cartridge from Ortofon makes it possible to upgrade the performance of an entire music system very easily by upgrading the stylus.
Technical data
- Frequency range: 20-25,000 Hz
- Frequency response:20-25,000 Hz
- Tracking ability at 315Hz at recommended tracking force | 65 µm
- Compliance, dynamic, lateral | 20 µm/mN
- Stylus type | Elliptical
- Stylus tip radius | r/R 8/18 µm
- Equivalent stylus tip mass | 0.5 mg
- Tracking force range | 1.5-2.0 g (15-20 mN)
- Tracking force (recommended) | 1.75 g (17.5 mN)
- Tracking angle | 20°
- Stylus colour | Black
- Recommended for the following cartridges | OM 5E, OMP 5E, OMB 5E, OMT 5E
