Rega - Fono Mini A2D - Black Phono Preamplifier with a USB Output

The Fono Mini A2D is a compact high quality moving magnet disc stage with a circuit based on our multi award winning Fono MM. Our best selling phono stage also includes a USB interface which allows you to transfer your beloved vinyl to digital audio files.

To transfer vinyl to your PC, you will need to install a digital audio editor. Such software is widely available as a free download (such as Audacity), from the internet. This is a simple interface which allows monitoring of volume and balance whilst transferring your audio to your PC hard drive.

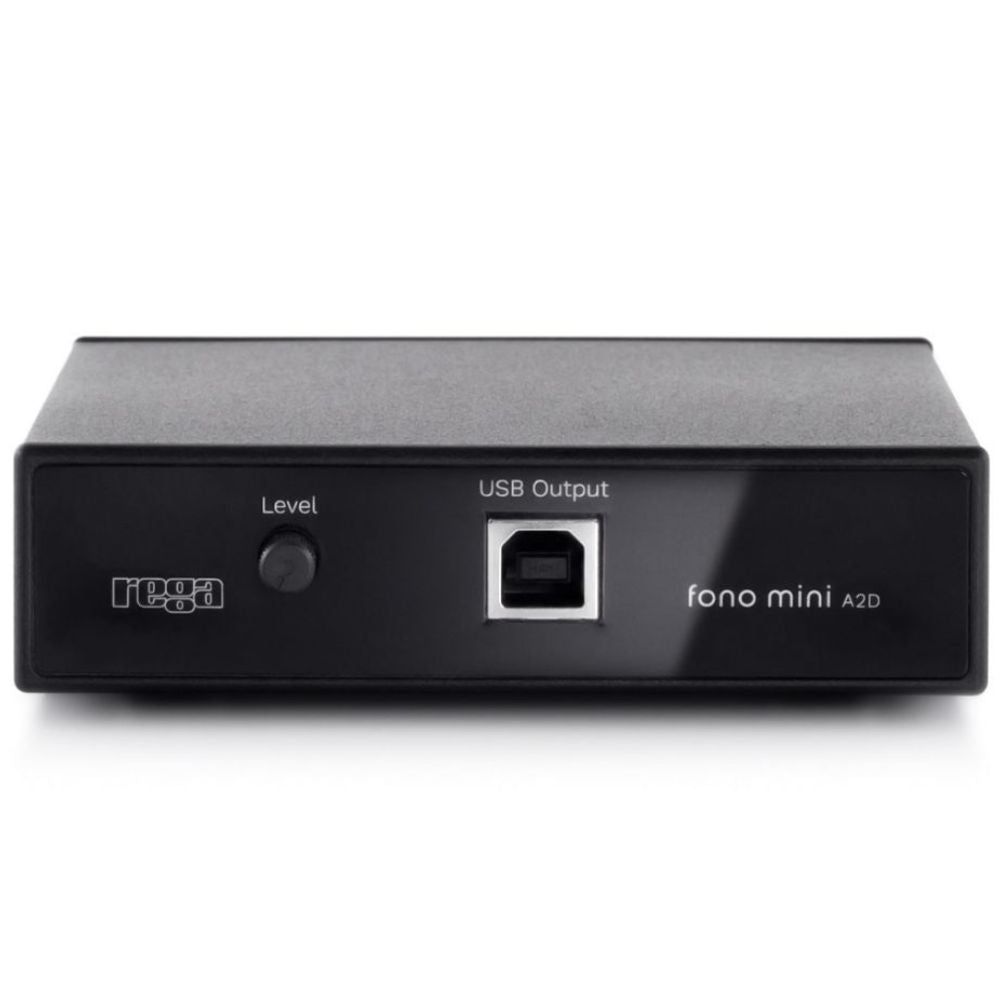

Audio editing software includes a level meter which indicates the output level achieved when playing a piece of vinyl. You should adjust the output as necessary via the ‘Level’ control located on the front panel. Always take special note of record levels to ensure optimum recording quality.

Technical Specifications

Input Sensitivity

5 mV for 500 mV Output

Input Loading

47 k +100 pF

Maximum input level

70 mV @ 1 kHz

Output Impedance

100 Ω

Signal to noise ratio

78 dBA ref 5 mV

Power requirements

24 V AC 85 mA

Input for full scale digital output

7.5 mV

Dimensions (W × H × D)

102 × 30 × 125 mm

Sample rate

16bit 44.1kHz (48kHz max) when transferring files via USB.
